  • Bulk Bag Unloading Station

Bulk Bag Unloading Station

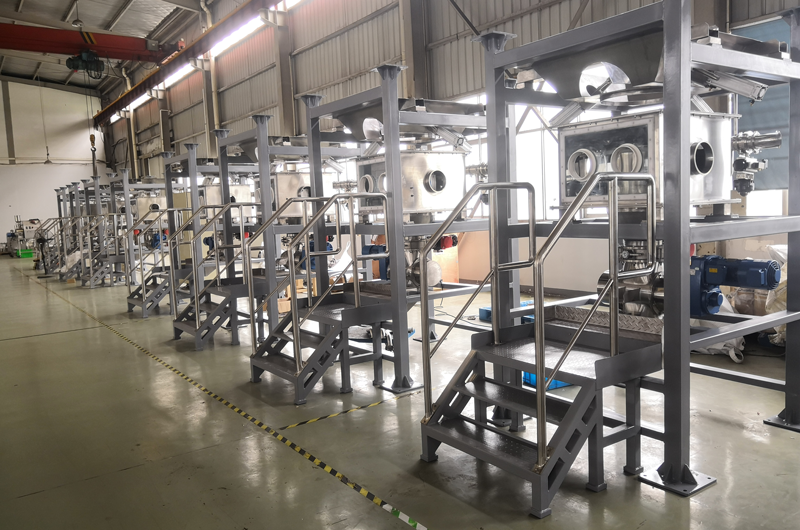

The ton bag unpacking station is an efficient material handling equipment specifically designed for handling materials packaged in ton bags. The station uses an electric hoist to lift the ton bag onto the ton bag rack, and the operator then manually opens the discharge port at the bottom of the ton bag, allowing the material to flow into the silo by its own gravity. The design of this device takes into account the user's on-site working conditions, workshop layout, process requirements, and material characteristics, thus providing multiple models to adapt to different application needs, ensuring operational flexibility and efficiency.

Product advantages
Parameters
ModelPocket width/mmInlet diameter/mmRemark
WDCB-4001000Φ400Copper and zinc-free design
WDCB-3501360Φ350Single-layer structure

working principle

The ton bag unpacking station consists of a frame with a discharge hopper, an electric hoist, an aperture valve, a pushing and kneading device, a dust removal device, etc. Lift the ton bag from the ground to the equipment feeding port through a crane/forklift, manually open the aperture valve, drop the ton bag port into the silo inlet, then close the clamping device, and open the ton bag discharge port at the side quick opening bag opening to start discharging; The equipment is equipped with pneumatic massage plates and vibration devices to facilitate the complete discharge of materials from the ton bag.
