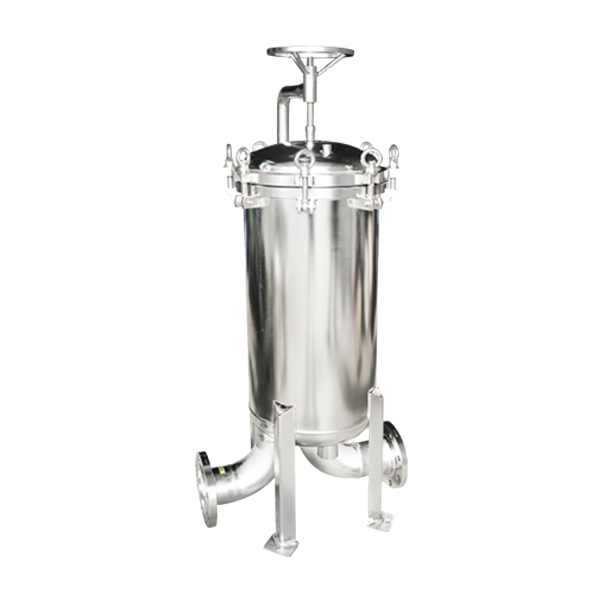

Bag Filter

Bag filtration system is a new type of filtration system, in which the filter bag is supported by a metal mesh basket inside the filter machine. The fluid flows in from the inlet, passes through the filter bag, and flows out from the outlet. Impurities are intercepted in the filter bag and can continue to be used after replacing it. Mainly used for filtering impurities in products (coarse filtration), equipped with a pressure monitoring gauge to remind the replacement of filter bags when the pressure is too high.

Send an email

Online Consultation

Online Message

Viscosity range
0-20000 cps
filtration accuracy
1-1000um
Contact material
Stainless steel SS304/SS316
Application scenarios
Fine chemicals, water treatment, papermaking, automotive industry, petrochemicals, mechanical processing, coatings, electronics, food and beverage, etc.

Product advantages

high-efficiency filtration
The bag filter design is reasonable and can provide efficient particle capture and filtration, ensuring that impurities in the liquid are effectively removed;
Large volume
Due to the large filtration area and high processing capacity of bag filters, they are suitable for applications that require high flow processing;
easy to maintain
Replacing the filter bag is relatively simple, usually only requiring opening the filter housing, removing the old bag, and installing a new bag; This reduces maintenance costs and downtime;
Multiple filter media options
Different types, materials, and grades of filter bags can be selected as needed to meet the filtration requirements of different applications;
Adaptable
Suitable for various liquids, capable of handling media with different viscosities, temperatures, and chemical properties;
Adjustable filtering accuracy
Bags with different filtration accuracies can be selected as needed to meet the fine filtration requirements in different applications;
cost-effective
Compared to other filtration devices, bag filters typically have lower purchase costs and are easy to maintain, helping to reduce operating costs;
environment protection
An efficient filtration process can reduce the generation of waste and pollutants, which helps to improve the environmental friendliness of the production process;
Suitable for batch and continuous processing
Bag filters are suitable for batch and continuous production environments, with flexibility and versatility;

Parameters

Model	Single-machine traffic(m3/h)	Selectable precision(um)	Number of filter bags per unit	Filtering area(m2)	Housing material	Applicable viscosity(cp)	设计压力(MPa)
WDGL-0.1/24㎡	1-1000	1-1000	1-24	0.1-24	304, 316L，CS	1-20000	0.6，1.0，1.6

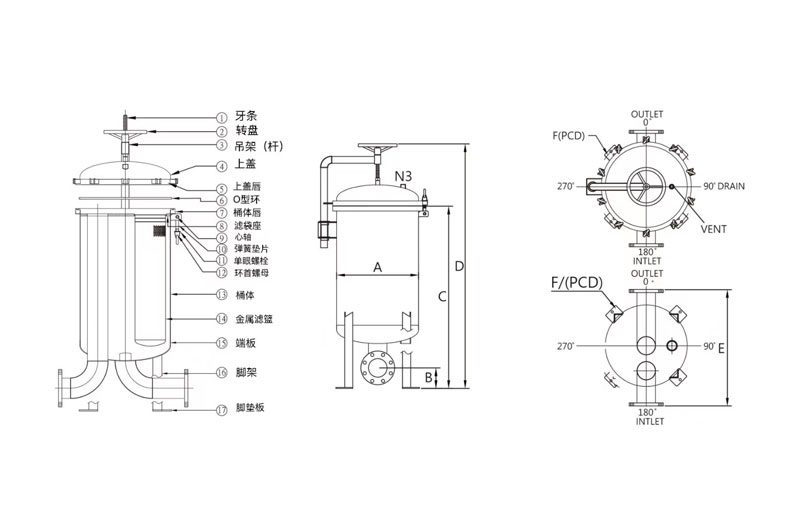

working principle

Fluid entering the filter:The liquid to be filtered enters the filter bag of the bag filter through the feed inlet

Filter bag intercepts particles: When the fluid passes through the filter bag, the filter bag will trap particles, impurities, and pollutants, making it impossible for them to pass through the filter bag

Clean fluid outflow: The relatively clean liquid that has been filtered flows out through the bottom or side of the filter and enters the next process stage or system

Replace the filter bag:When the filter bag inside the bag filter is saturated or needs to be replaced, the operator can open the outer shell, remove the old bag, and install a new filter bag
