Current Location ：Home > Products > Grinding Equipment > Micro scale sand mill > High-Efficiency Pin-Type Horizontal Sand Mill

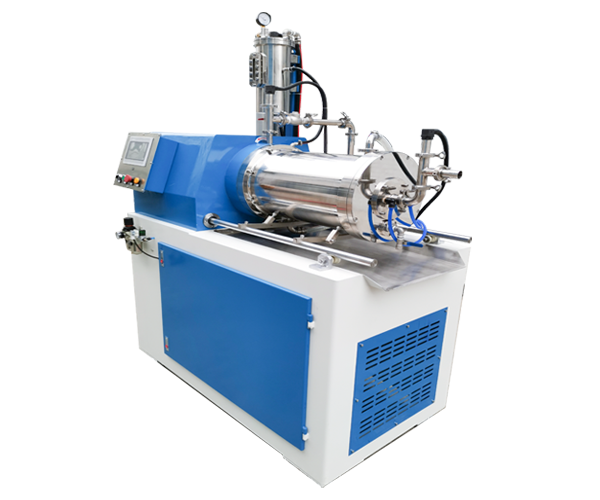

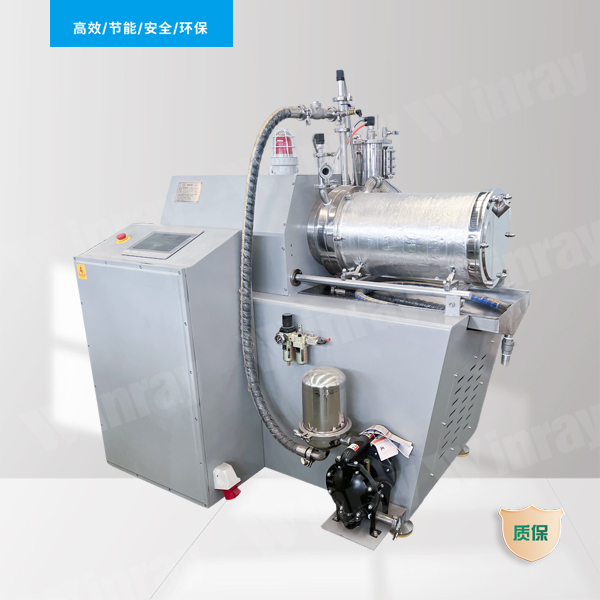

High-Efficiency Pin-Type Horizontal Sand Mill

The high-efficiency bar pin horizontal sand grinder adopts specially designed bar pins to enhance the impact and shear effect of grinding beads on materials. It can be used for a wide range of materials with low to medium viscosity and high solid content, and adopts dynamic self-cleaning gap discharge, such as printing ink, flexible relief ink, automotive repair paint, color paste, ordinary electronic paste, graphite paste, etc.

Send an email

Online Consultation

Online Message

Discharge fineness
＜15μm
Medium particle size
0.6-2.0mm
Discharge method
Dynamic and static ring gap discharge
Grinding chamber volume
15/20/30/60（L）

Product advantages

Internal cooling system
The rotor is equipped with an internal cooling system to effectively control the temperature generated during the grinding process, making it suitable for grinding heat sensitive materials;
Grinding structure
Rod pin grinding structure, enhancing the impact and crushing effect of grinding beads on materials, high energy density, suitable for grinding difficult to disperse materials;
Grinding cylinder body
The grinding cylinder body is made of high resistance running in steel, which has no metal pollution and does not change color. PU, ceramic and other materials can be used;
Dynamic separator
Gap type dynamic separator, with self-cleaning ability, not easy to block, and long service life;
Grinding media
The diameter of the grinding medium can be selected as 0.6mm, with high grinding efficiency;
protection system
Equipped with real-time monitoring and protection systems for water temperature, material temperature, material pressure, water pressure, air pressure, etc., to ensure the normal operation of the equipment;
Tailor made
According to the characteristics of the customer's materials, pneumatic diaphragm pumps, screw pumps, gear pumps, etc. can be selected.

Parameters

Model	WorkingVolume (L)	Driving power (KW)	Processing batch size (L)	Linear velocity (m/s)	Medium particle size (mm)	Overall dimensions (mm)	Weight (KG)
WM-R15	15	11	60-200	8	0.8--2	13007001300	1300
WM-R20	20	22	80-200	8	0.8--2	14508001450	1480
WM-R30	30	30	110-300	8	0.8--2	17009801750	2200
WM-R50	50	45	150-400	8	0.8--2	180010001800	2380
