Pin-Type Nano Horizontal Sand Mill

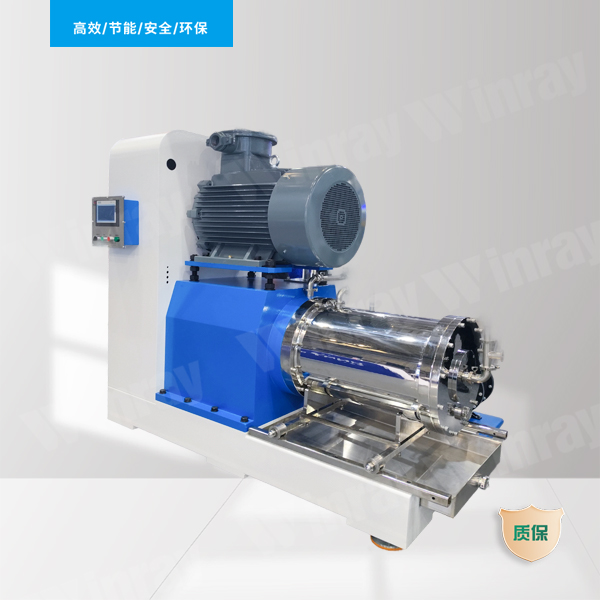

The rod pin nano horizontal sand grinder adopts the latest research and development of large-sized hollow dynamic rod pin rotor, large-area centrifugal separation screen cylinder discharge, high flow rate, good filtration effect, and grinding fineness up to nanometer level. It is a new nano grinder developed and designed for grinding tasks with high fineness requirements such as nanomaterials, digital inkjet, high-end color paste, graphene, etc.

Send an email

Online Consultation

Online Message

Discharge fineness
＜300 nm
Medium particle size
0.1-0.3 mm
Discharge method
Centrifugal separation sieve tube discharge
Grinding chamber volume
5/10/15/25/30/60（L）

Product advantages

Cyclic grinding
High flow ultra-fine circulation grinding;
fully enclosed
Fully enclosed, golden ratio grinding barrel body length to diameter ratio;
Perfect combination
The perfect combination of large-sized hollow rod pin rotor and high flow screen cylinder separator optimizes the particle size distribution of the product;
Nano scale grinding
Using high-energy density rod pins and nanoscale grinding, the efficiency is 3-5 times that of ordinary sand mills;
High traffic design
The high flow design ensures that the material stays in the grinding chamber for a short period of time, and the heat generated by grinding can be quickly carried out with the circulating material, effectively solving the heat dissipation problem of traditional sand mills
Save energy consumption
In response to the high requirements for material fineness and low viscosity, small diameter grinding beads are used, and the geometric shape of the rod pin and its distribution in the grinding chamber are scientifically designed to save energy consumption;
Equipment safety
Double end mechanical seal, equipped with independent cooling unit and sensor monitoring to ensure equipment safety;
Tailor made
The material of the grinding components can be reasonably switched according to the material characteristics and customer requirements, including materials such as zirconia, polyurethane, wear-resistant alloys, etc.

Parameters

Model	Working volume (L)	Driving power (KW)	Processing batch size (L)	Linear velocity (m/s)	Medium particle size (mm)	External dimensions (mm)	Weight (KG)
WNM-R5C	5	5.5	35-125	9.2	0.3	9506001000	500
WNM-R10C	10	15	160-230	9.5	0.3	11009001360	950
WNM-R15C	15	30	180-250	10	0.3	150011001700	1180
WNM-R25C	25	37	140-360	10	0.3	145010001500	1450
WNM-R30C	30	37	200-290	11	0.3	160010201600	1600
WNM-R60C	60	45	600-1200	11.2	0.3	16507801610	1900
