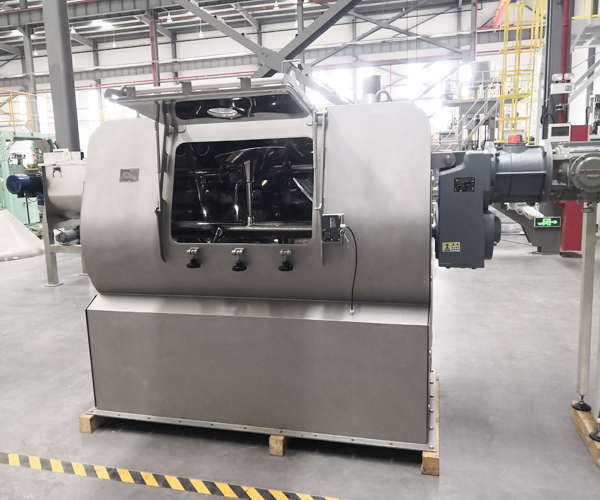

Horizontal Plow Mixer

The plow blade mixer is a device specifically designed for efficient mixing of powder materials, named after its unique mixing shaft design that resembles a plow. The mixing shaft of this mixer is fixed on a bracket and installed on a horizontal drive shaft. During the working process, the stirring shaft rotates along the mixer wall, causing the materials to not only undergo diffusion motion, but also generate friction and shear effects between each other. This mixing method that combines diffusion, friction, and shear makes the plow blade mixer more effective in mixing powders, achieving uniform and efficient mixing of materials.

Send an email

Online Consultation

Online Message

Radial clearance between plow blade and cavity
4-7mm
vibration value
2.5 mm/s
Main motor power
7.5-160

Product advantages

efficiency improvement
Design optimization reduces the mixing process time and achieves better mixing uniformity
Energy saving features
Lower energy consumption during operation, in line with the energy-saving and emission reduction requirements of modern industry
Low speed mixing effect
Low speed operation ensures minimal material heating during the mixing process and maintains material quality
Runs smoothly
Low vibration and noise, effectively controlling dust overflow, ensuring safe working environment
Large scale mixing
Capable of handling large batches of materials to ensure consistency of the mixture
Intelligent operation
Adopting a computer control system to reduce manual intervention and improve the level of intelligent operation

Parameters

Model	equipmentVolume (L)	Production capacity（L/Batch）	Mixing quantity（Kg/Batch）	Power（Kw）	Rotational speed（R/min）	throwing knifePower（Kw）	throwing knifeRotational speed（R/min）	shapeSize（Length * Width * Height）	Equipment weight（Kg）
WDHM-500	500L	100-350	＜300	7.5	41	2-3	1500或3000	25008001200	1200
WDHM-1000	1000L	300-700	＜300	11	41	2-3	1500或3000	2570010001450	1800
WDHM-2000	2000L	500-1500	＜1000	15	33	3-5.5	1500或3000	340012001700	2500
WDHM-4000	4000L	1500-3000	＜2000	30	33	4-5.5	1500或3000	410014002000	4000
WDHM-6000	6000L	2000-4000	＜3000	37	28	4-5.5	1500或3000	410015002200	5800
WDHM-10000	10000L	3000-7000	＜5000	55	17	6-5.5	1500或3000	600018002500	8500
WDHM-20000	20000L	10000-15000	＜10000	110	17	8-5.5	1500或3000	750024003000	13500

working principle

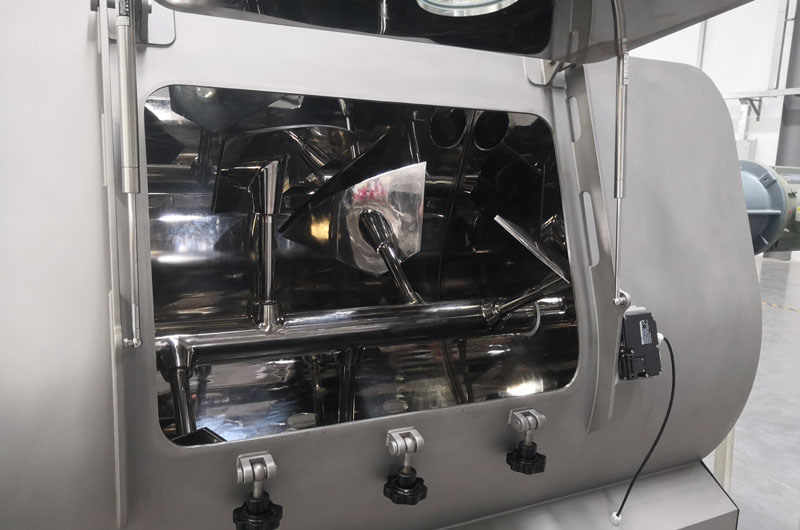

Working Principle:The working principle of a horizontal plow blade mixer involves the collaborative action of multiple key components: the transmission part, mainly composed of a motor, a cycloidal pinwheel reducer, and a coupling, is responsible for converting the power of the motor into the required speed and torque and transmitting them to the plow blade shaft; The horizontal cylinder is made of steel plate and is used for storing materials. It is equipped with multiple holes for easy access and observation of materials, and its two ends are fixed with plow blade shaft support seats; The plow blade assembly shaft includes a plow blade, a plow blade arm, and a main shaft. The plow blade is mounted on the main shaft through the plow blade arm and adopts a Haff structure for easy disassembly and assembly; Flying knife set, consisting of multiple flying knives, directly driven by a motor, installed on the side of the cylinder, using multiple sealing structures to prevent dust from entering the bearings; The discharge valve is located at the bottom of the cylinder and is controlled by a handle and a four-bar linkage mechanism to close and release the material. This design achieves efficient mixing and is suitable for processing various powder materials
