There are various types of mixers, including single structure and combination structure. Single structures include blade type, anchor type, frame type, butterfly type, spiral type, turbine type, cup type, etc. Each structure has its own structural characteristics and advantages. Different materials can be selected according to process requirements, and different structures can be combined with each other according to various needs.
Mixing structure

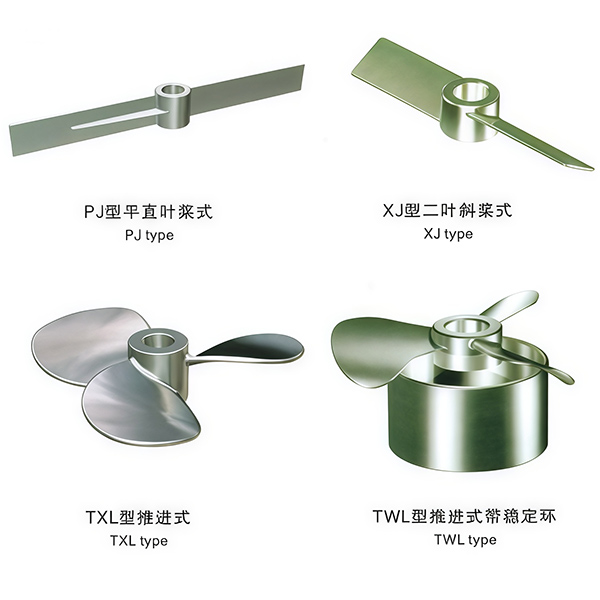

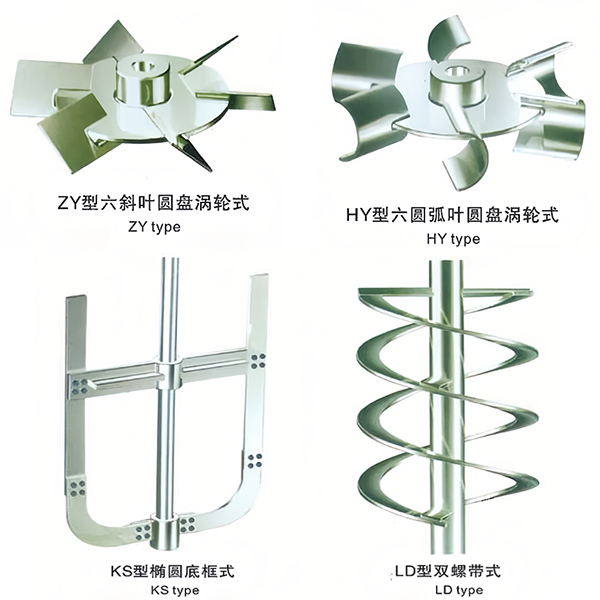

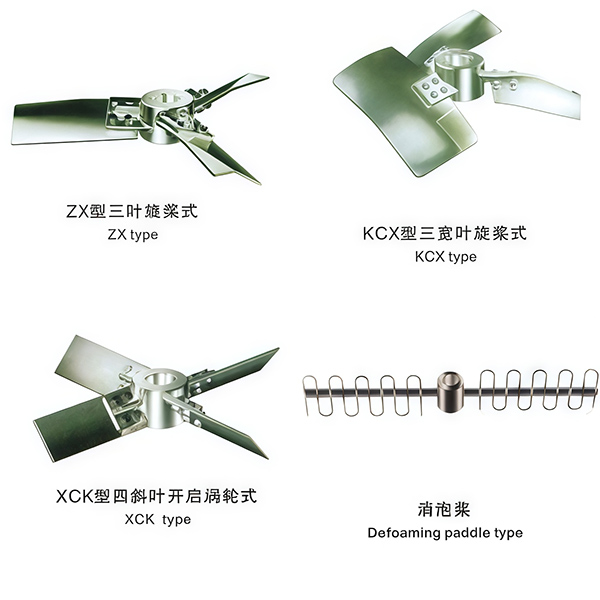

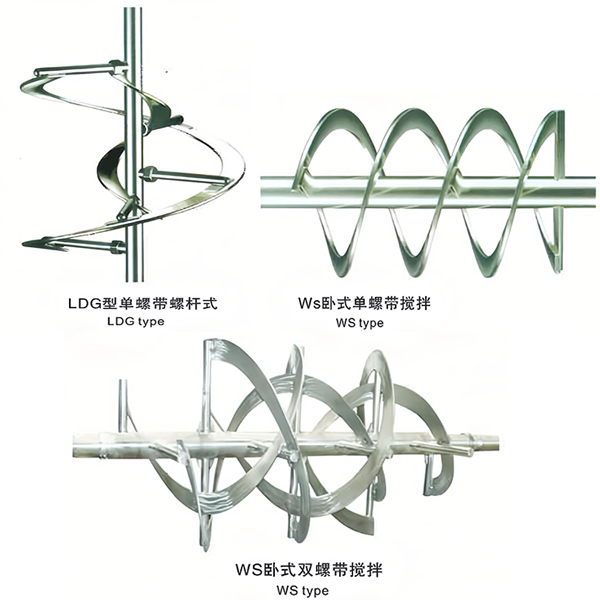

Paddle/Anchor/Frame/Butterfly/Spiral/Turbine/Cup/Other
Contact material
Stainless steel SS304/SS316/SS316L/SS321, capable of producing special coatings such as PTFE
Application scenarios
Suitable for adhesives, new energy, battery pastes, solder pastes, ceramic pastes, silicone inks, sealants, etc. Non standard customization: (optional)
Non-standard customization
(Optional)
类型 | 粘度适应范围 | 核心功能 | 典型行业 |
Paddle type | ≤50,000cps | Medium-low viscosity mixture | Chemicals, Food |
Anchor type | 100,000-500,000cps | High-viscosity scraping and mixing | Pharmaceuticals, adhesives |
Box-type | ≥500,000cps | Ultra-high viscosity overall mixing | Cosmetics, rubber |
Butterfly style | 10,000-200,000cps | Medium to high viscosityDispersion | Coatings, New Energy |
Spiral | ≥1,000,000cps | Three-dimensional tumbling of highly viscous materials | Asphalt, silicone |
Turbine type | ≤10,000cps | Gas-liquid/Liquid-liquidDispersion | Bioengineering, Water treatment |
Cup shape | ≤50,000cps | Precise processing of micro-samples | Laboratory, pharmaceuticals |
