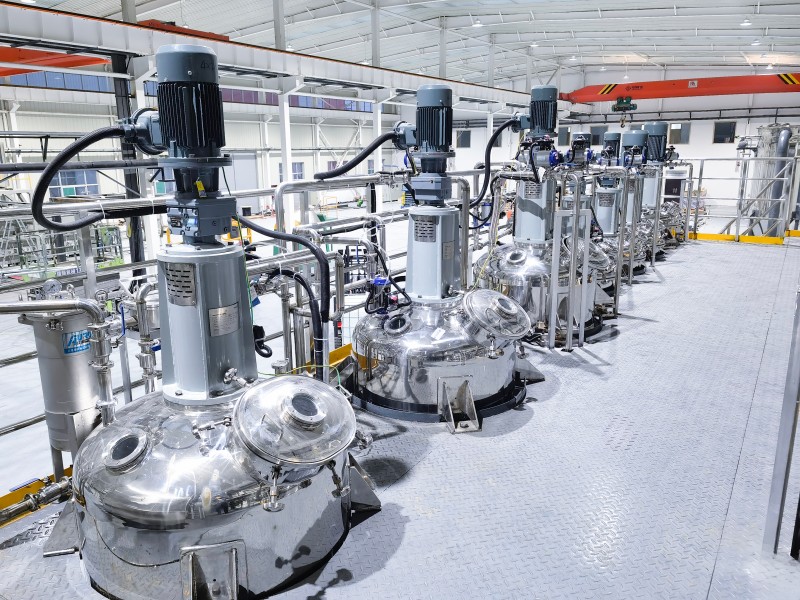

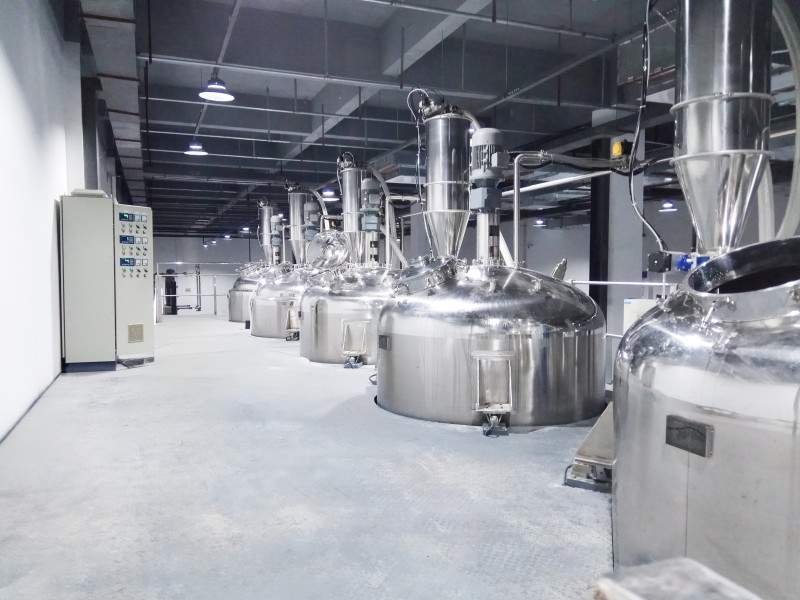

A kettle mixer is an efficient mixing equipment used for mixing tanks or large reaction kettles, mainly used to achieve uniform mixing of materials inside the kettle. There are various forms of mixing, including blade type, anchor type, frame type, screw belt type, butterfly type, etc.
Viscosity range
0-60,000cp
production capacity
50-2000L
Contact material
Stainless steel SS304/SS316/SS316L/SS321, capable of producing special coatings such as PTFE
Application scenarios
Wet dispersion, mixing, and pulping of solid-liquid phase materials with viscosity below 60000 cp and solid content below 80%, such as coatings, inks, pesticides, adhesives, micro nano materials, etc
Model | Motor power（KW） | Voltage level （V） | Rotational speed (rpm) | Stirring paddle diameter（mm） | Maximum processing capacity(L) | Touch-sensitive materials |
WFJB-1.5 | 1.5 | 380 | 85 | 350 | 500 | SS304/SS316Stainless steel |
WFJB-2.2 | 2.2 | 380 | 76 | 400 | 1000 | SS304/SS316Stainless steel |
WFJB-4 | 4 | 380 | 60 | 500 | 1500 | SS304/SS316Stainless steel |
WFJB-5.5 | 5.5 | 380 | 53 | 600 | 2200 | SS304/SS316Stainless steel |
WFJB-7.5 | 7.5 | 380 | 50 | 650 | 3000 | SS304/SS316Stainless steel |
WFJB-11 | 11 | 380 | 45 | 750 | 4000 | SS304/SS316Stainless steel |
WFJB-18.5 | 18.5 | 380 | 45 | 900 | 6000 | SS304/SS316Stainless steel |
WFJB-22 | 22 | 380 | 45 | 1000 | 10000 | SS304/SS316Stainless steel |
