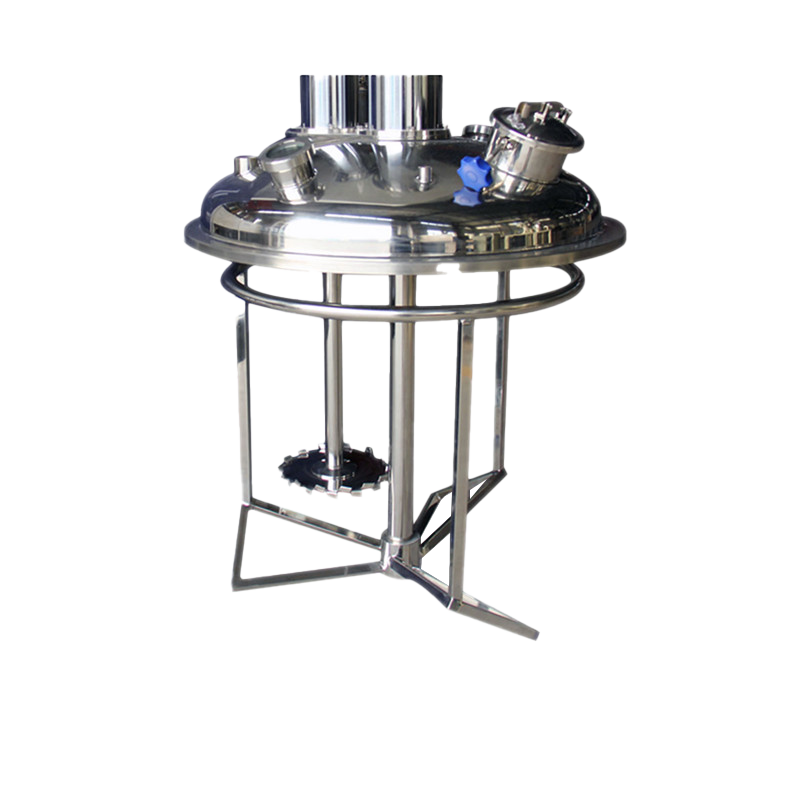

The butterfly disperser mixer is an efficient mixing device designed specifically for medium to high viscosity materials, with a maximum viscosity of up to 1000000cp. It integrates disc mixing and disc dispersion, generating strong shear forces and vortex effects during the rotation of the dispersing disc. The butterfly mixer fully utilizes the axial and radial mixing effects, achieving fast and uniform mixing of materials with fewer bubbles.
Viscosity range
0-600,000cp
production capacity
50-2000L
Contact material
Stainless steel SS304/SS316/SS316L/SS321, capable of producing special coatings such as PTFE
Application scenarios
Viscosity below 600000 cp, solid content below 80%, suitable for adhesives, new energy, battery pastes, solder pastes, ceramic pastes, silicone inks, sealants, etc.
Model | Maximum processing capacity（L） | Distributed Power (kW) | Dispersion speed (rpm) | Mixing power (KW) | Stirring speed (rpm) | Lifting stroke(mm) |
WDFJ-Ⅱ-50 | 40 | 4 | 0-2880 | 2.2 | 0-80 | 500 |
WDFJ-Ⅱ-100 | 80 | 5.5 | 0-2880 | 5.5 | 0-80 | 700 |
WDFJ-Ⅱ-300 | 240 | 11 | 0-1450 | 7.5 | 0-60 | 900 |
WDFJ-Ⅱ-500 | 400 | 18.5 | 0-1450 | 11 | 0-60 | 1000 |
WDFJ-Ⅱ-800 | 650 | 30 | 0-1450 | 18.5 | 0-50 | 1100 |
WDFJ-Ⅱ-1000 | 800 | 37 | 0-1450 | 22 | 0-50 | 1200 |
WDFJ-Ⅱ-1500 | 1200 | 55 | 0-960 | 37 | 0-40 | 1400 |
WDFJ-Ⅱ-2000 | 1600 | 75 | 0-960 | 45 | 0-40 | 1600 |
